02-887 Main Image of WRS 2-11/32" Flared Pivot Bar

WRS 2-11/32" Flared Pivot Bar

SKU 02-887
by WRS
€3,95 - €3,95
€3,95
€3,95 - €3,95
€3,95

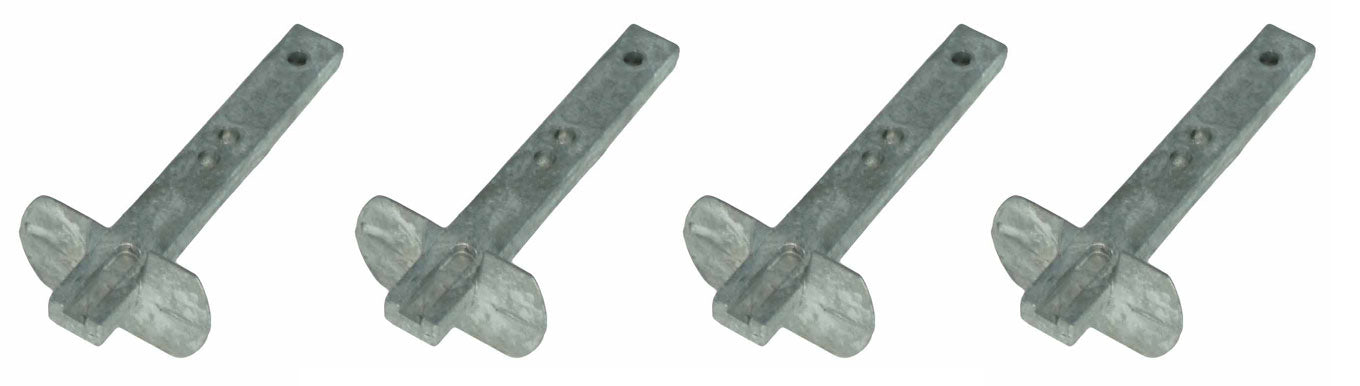

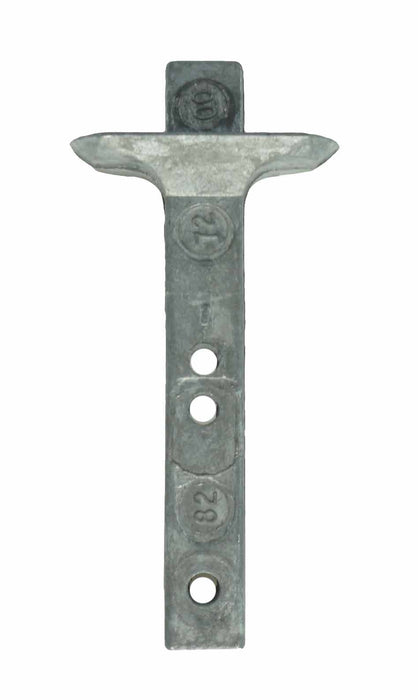

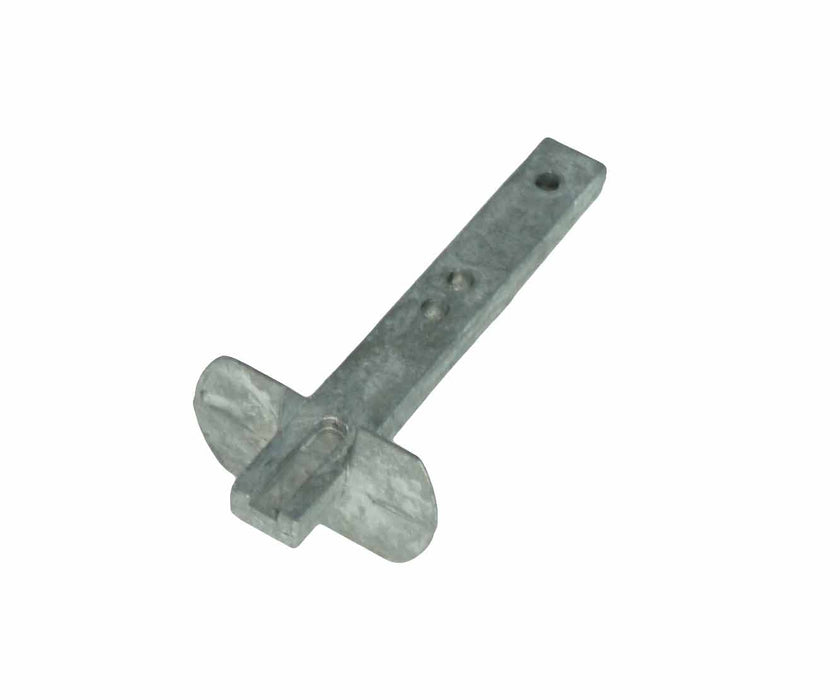

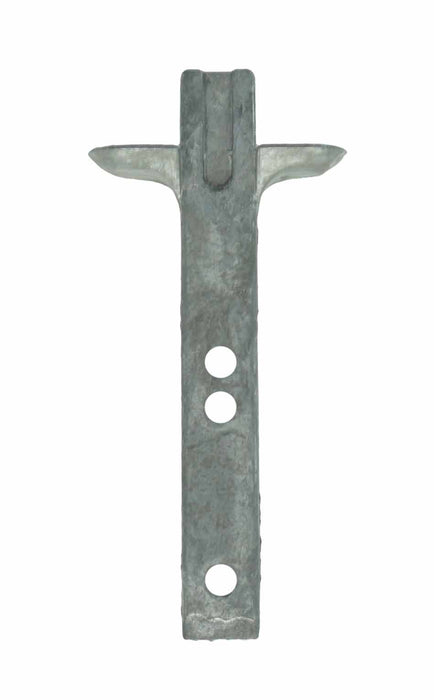

Window Pivot bars are located at the bottom of the sash and work together with the pivot lock shoe to allow your sash to tilt inwards for cleaning. This die-cast zinc pivot bar features a T-shaped design and a 3-hole configuration.

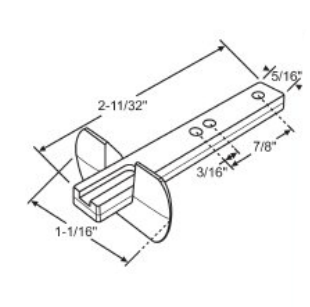

  • 2-11/32" long
  • 3/16" from first to the second hole, 7/8" from second to the third hole
  • Die-cast zinc
  • Uses #4 screws
  • See pictures for additional measurements
  • View our guide on measuring pivot bars
To learn more about our Pivot Bars watch the video below:
