The pivot lock shoe is used in tilt window applications and sits in the jamb channel and has a cam which will lock the shoe in the channel when the sash is tilted inwards. Pivot lock shoes work in tandem with window pivot bars to allow windows to tilt. This pivot lock shoe features a zinc cam.

REPLACEMENT FOR OUR 1-3/8" Coil Balance/Pivot Lock Shoe - Gray (Discontinued)
Designed for Use with Coil Spring Balance Systems, Features a Zinc Cam
Pivot Lock Shoes Sold Individually. Pivot Bars, Other Accessories and Hardware Not Included
Compatible with the following Pivot Bars, SKU #: 01-142, 01-141, 01-169, 01-48, 01-31-33, 01-32-31, 05-265, 081-34, 05-31, 02-266, or 020-361
PLEASE NOTE: This Pivot Lock Shoe is NOT Compatible with Round Head Pivot Bars such as SKU #: 02-886, 01-416, 72-123, 02-907 and Others.

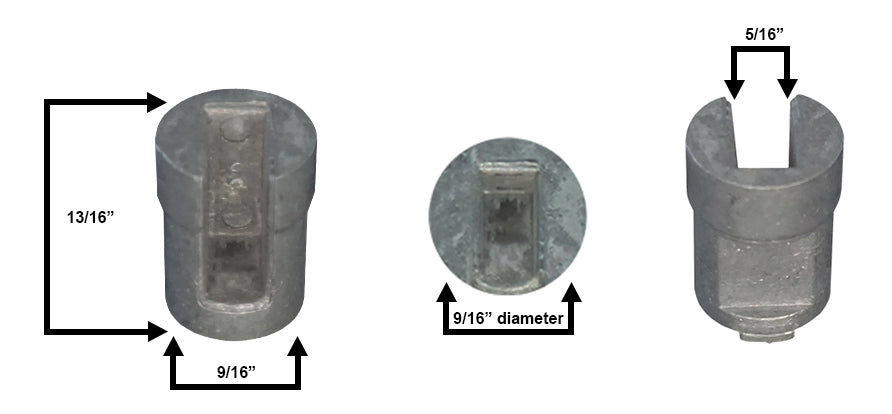

See Product Images for Dimensions
View our guide on measuring pivot lock shoes

To learn more about Pivot Lock Shoes watch the videos below:

Pivot Lock Shoe Overview:

How to Remove Pivot Lock Shoe:

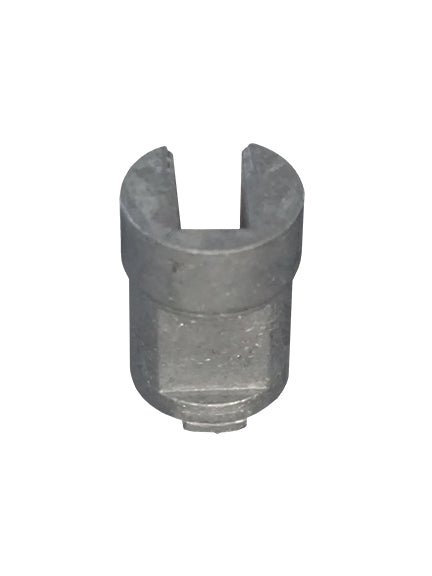

WRS 9/16" Zinc Cam - Open Cam
