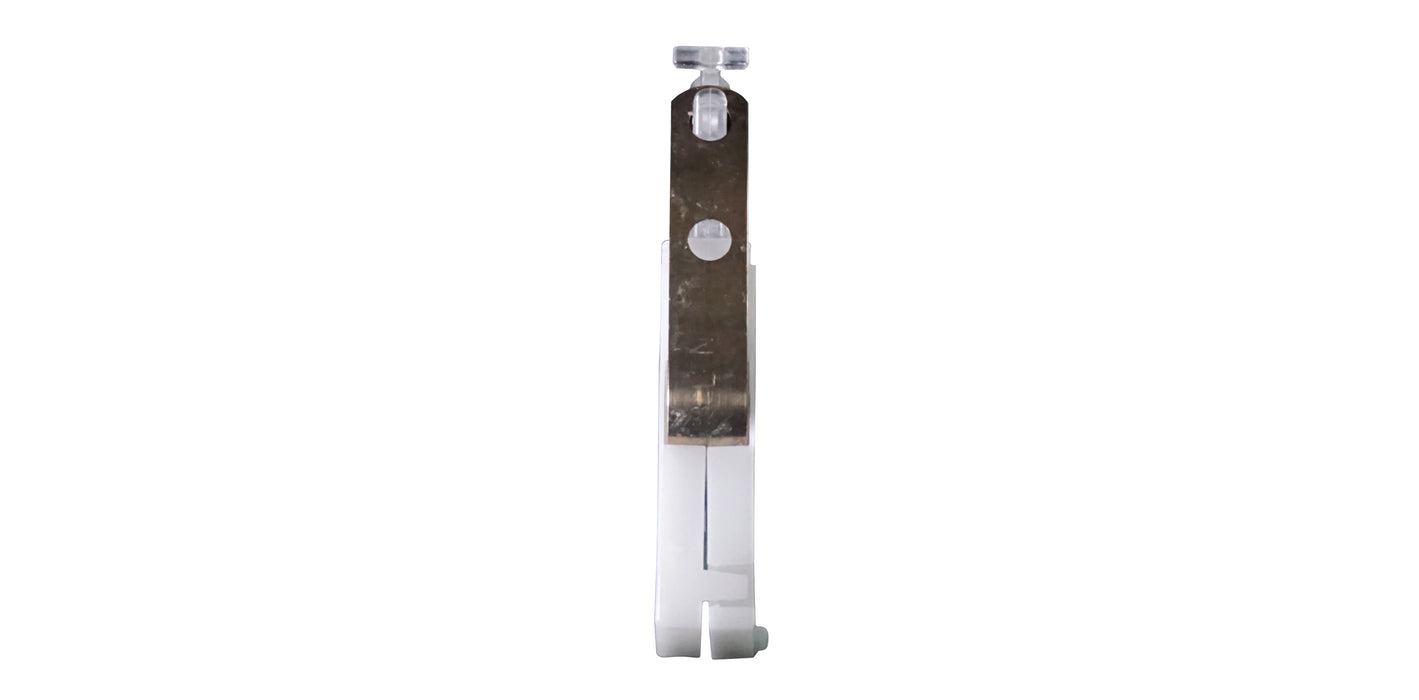

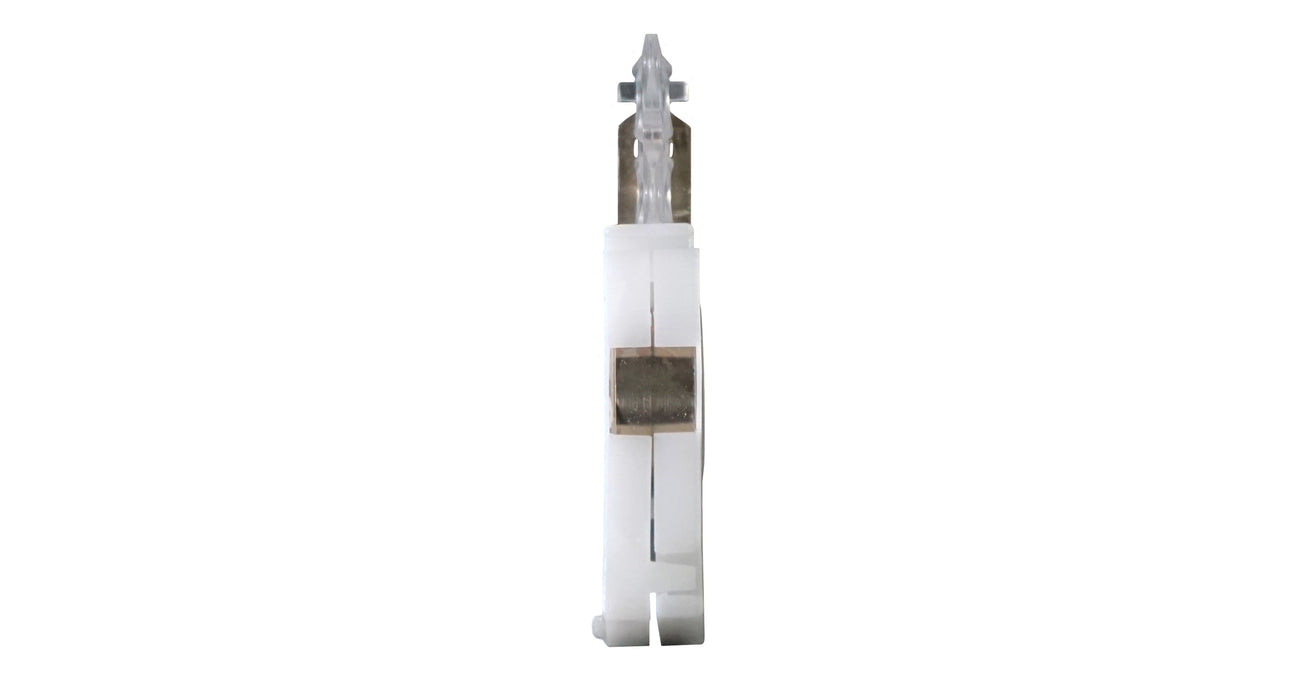

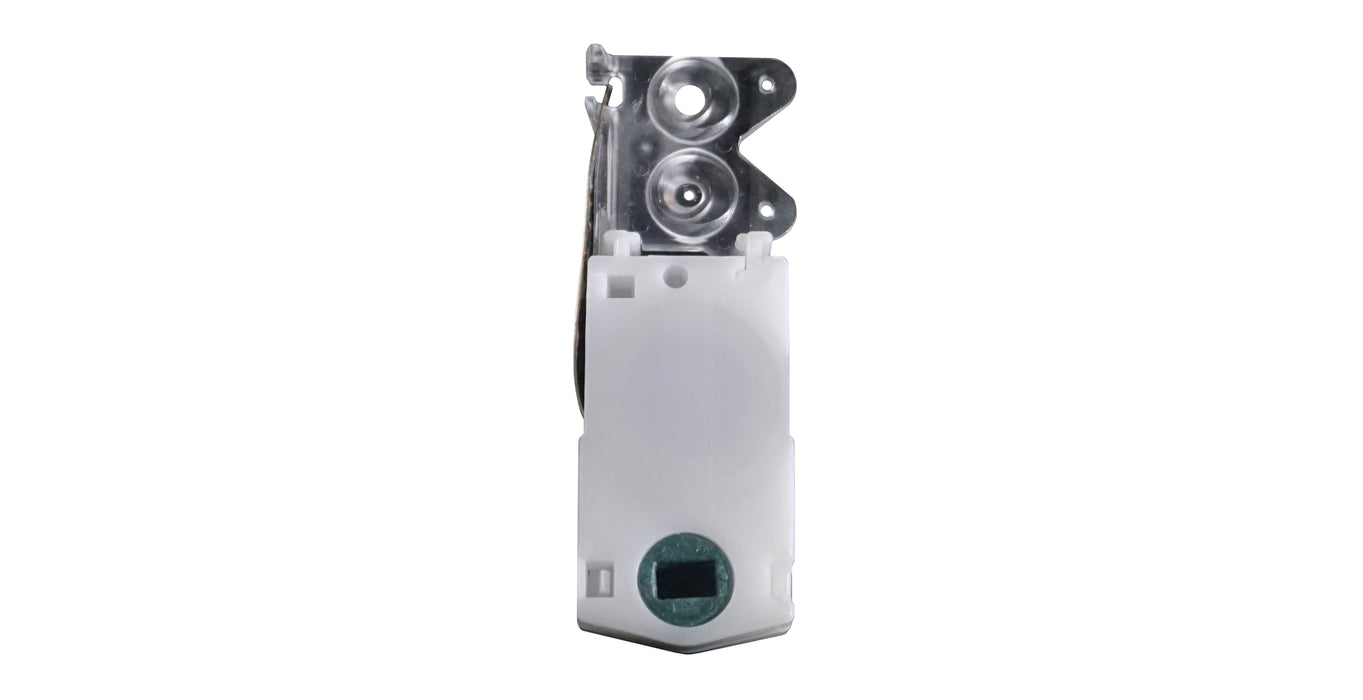

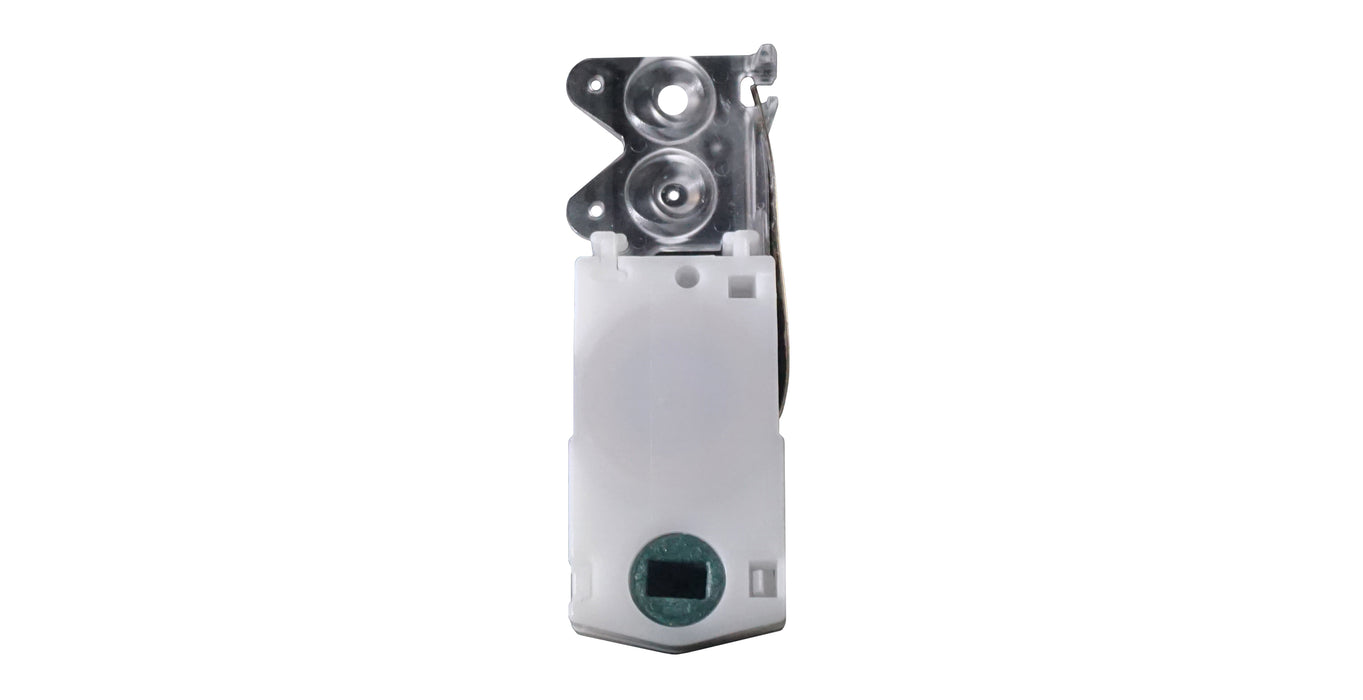

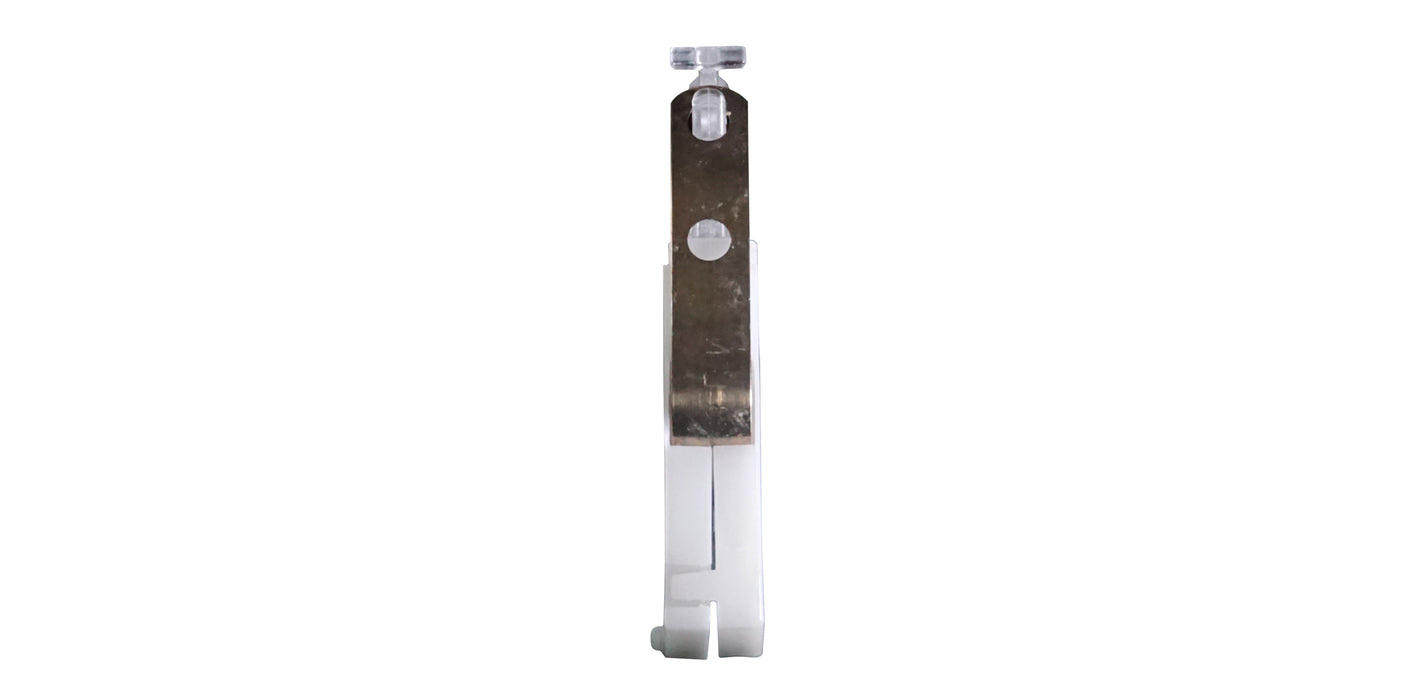

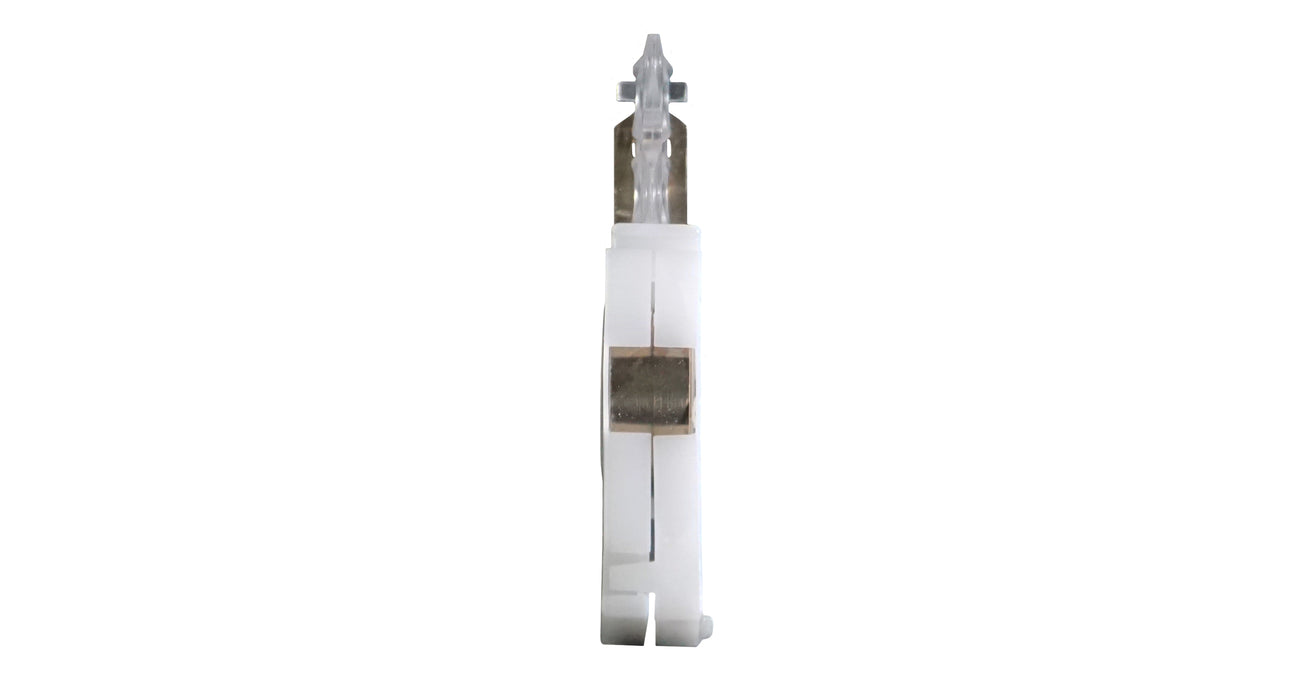

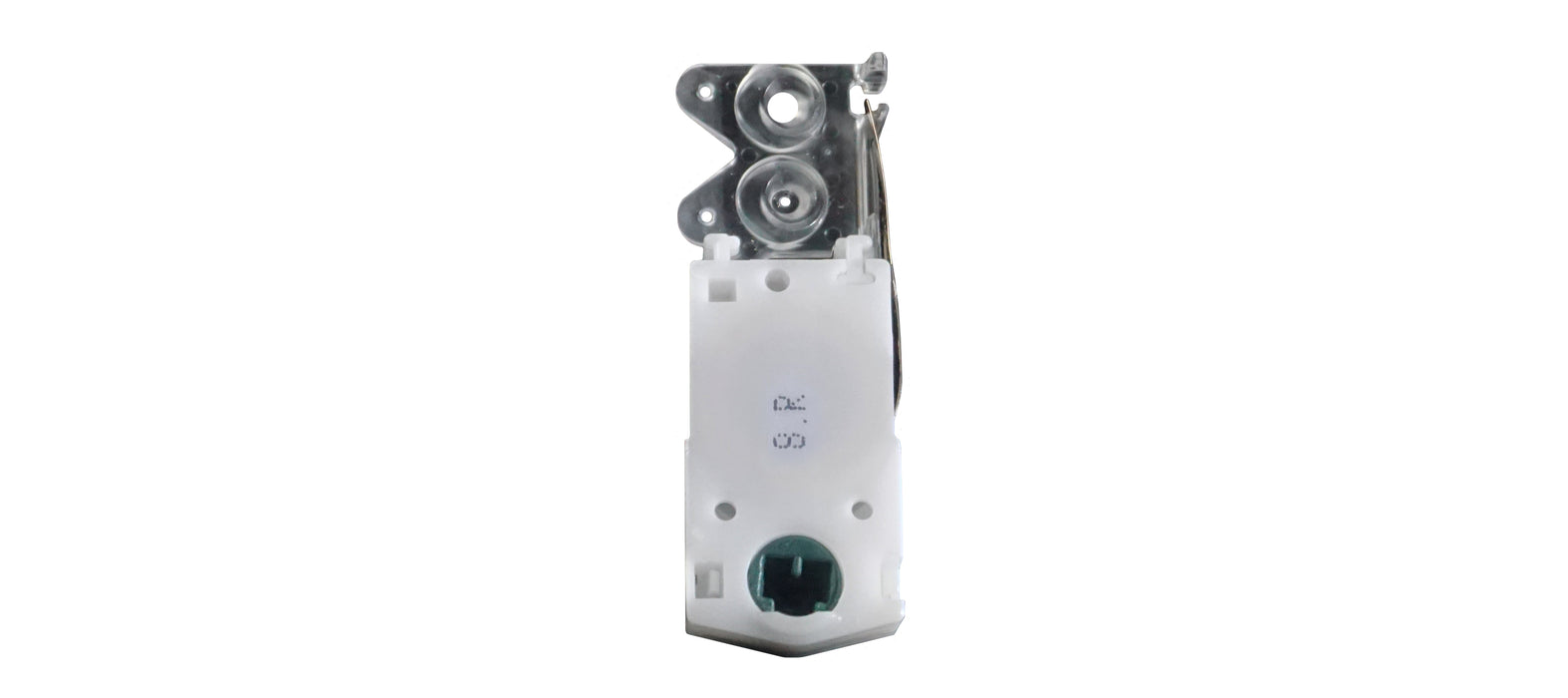

WRS Caldwell Series 32 Left or Right Hand .562" Roller Tilt Single Spring Constant Force Balance Assembly with Blue Cam - 8 lbs

WRS Caldwell Series 32 Left or Right Hand .562" Roller Tilt Single Spring Constant Force Balance Assembly with Blue Cam - 8 lbs

SKU 01-32-1A-8-1-L
by Window Hardware Direct
€4,95 - €4,95
€4,95
€4,95 - €4,95
€4,95

Restore smooth, reliable window operation with the Caldwell Series 32 Roller Tilt Constant Force Balance Assembly. Designed for tilt-in aluminum windows, this .562" wide balance features a single spring constant force design that delivers consistent lifting power and long-term durability. The blue cam configuration ensures proper engagement with compatible tilt window systems, helping maintain balanced sash movement and preventing sudden drops.

Rated at 8 pounds, this balance is ideal for supporting lighter window sashes while maintaining controlled movement and improved window performance. The integrated roller tilt mechanism allows the sash to tilt inward for easy cleaning and maintenance without compromising stability.

Manufactured to Caldwell Series 32 specifications, this balance assembly is commonly used in residential and commercial aluminum window systems and is a dependable replacement for worn or failed constant force balances.

⚠️ Note:
Balances are handed. Left-hand and right-hand balances are sold separately and must be selected according to your window configuration.

Key Features

  • Series: Caldwell Series 32

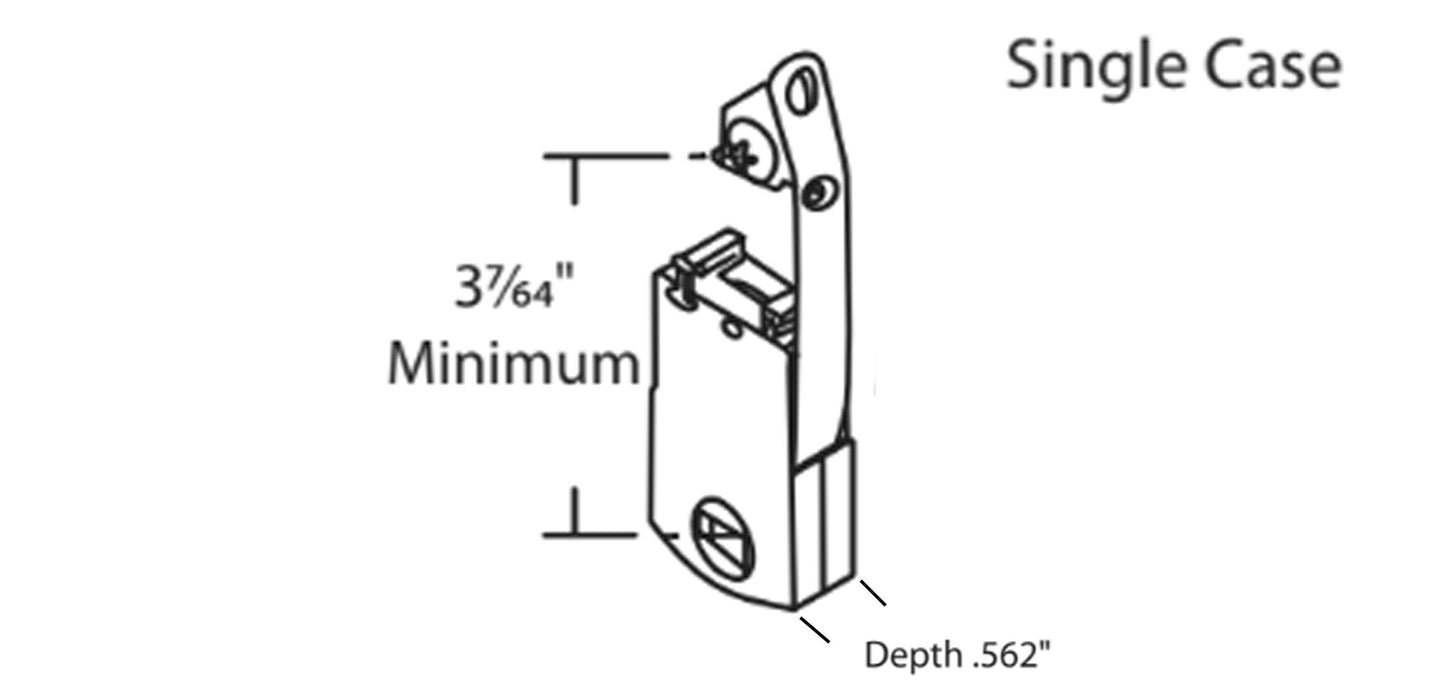

  • Width: .562" (9/16") balance channel

  • Spring Type: Single spring constant force

  • Weight Rating: 8 lb sash support per side, 16 lb sash support when combined

  • Cam Color: Blue

  • Function: Roller tilt balance for tilt-in windows

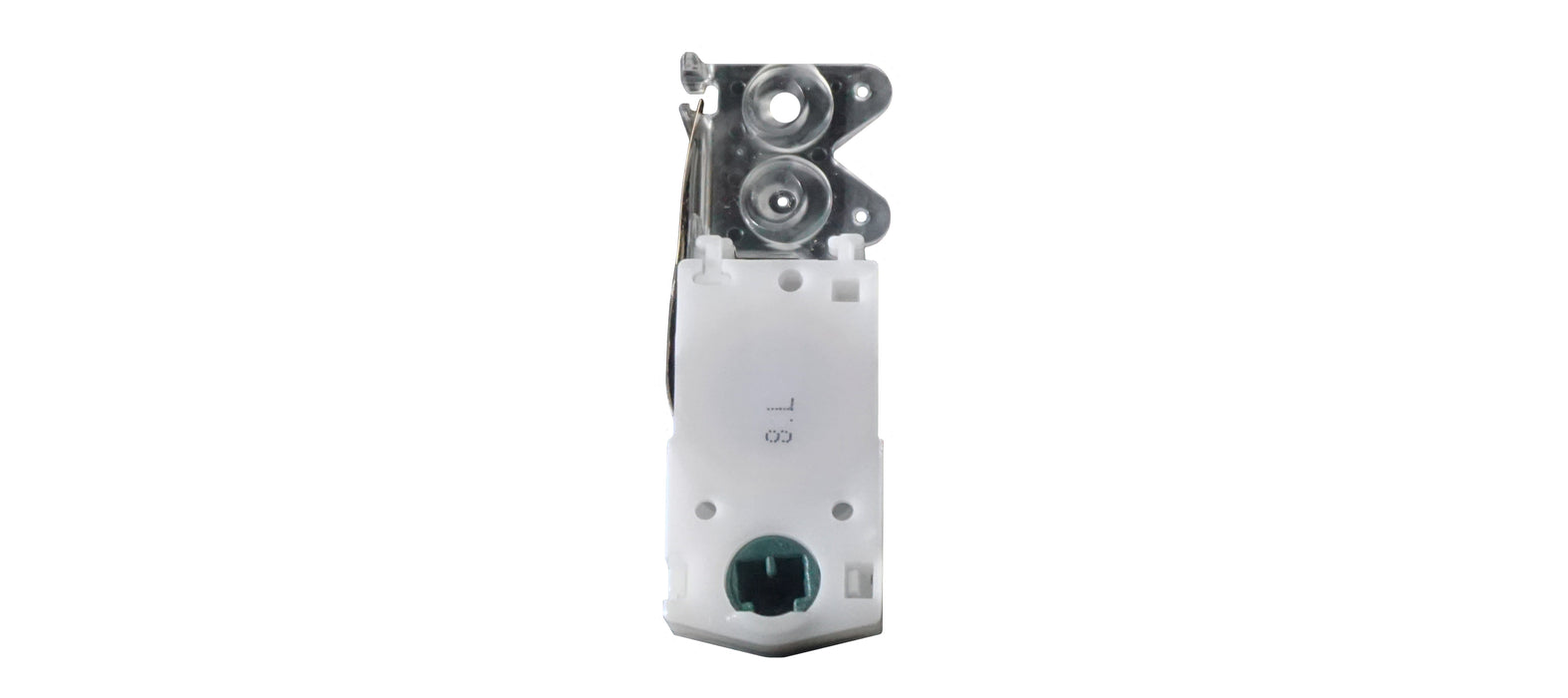

  • Handing: Available in left-hand or right-hand versions (sold individually), Stamped 8L for Left Hand and 8R for Right Hand

Benefits

  • Provides consistent lifting force for smooth window operation

  • Durable constant force spring resists fatigue over time

  • Roller tilt design allows easy sash tilt for cleaning

  • Direct replacement for many Caldwell Series 32 balance systems

Common Questions

What is a Caldwell Series 32 balance?
A Caldwell Series 32 balance is a constant force window balance designed for tilt aluminum windows, using a spring system to counterbalance the window sash weight for smooth opening and closing.

How do I know if I need a left or right-hand balance?
Window balances are handed based on their installation side when viewed from inside the home. Order the left-hand balance for the left side of the window and the right-hand balance for the right side. We recommend replacing both balances at the same time for optimal performance.

What does the blue cam indicate?
The blue cam identifies the internal cam configuration that engages with the tilt pivot bar and determines compatibility with specific window hardware systems.
