Pivot bars are small but critical components in tilt windows, allowing the sash to connect to the window balance system. When pivot bars are damaged, bent, or broken, windows may not tilt properly, may drop suddenly, or fail to stay open. Knowing how to replace pivot bars correctly can restore smooth operation and extend the life of your windows.

This guide explains what pivot bars are, when to replace them, and how to perform pivot bar installation safely and correctly, whether you’re a homeowner, contractor, or repair professional.

What Is a Pivot Bar?

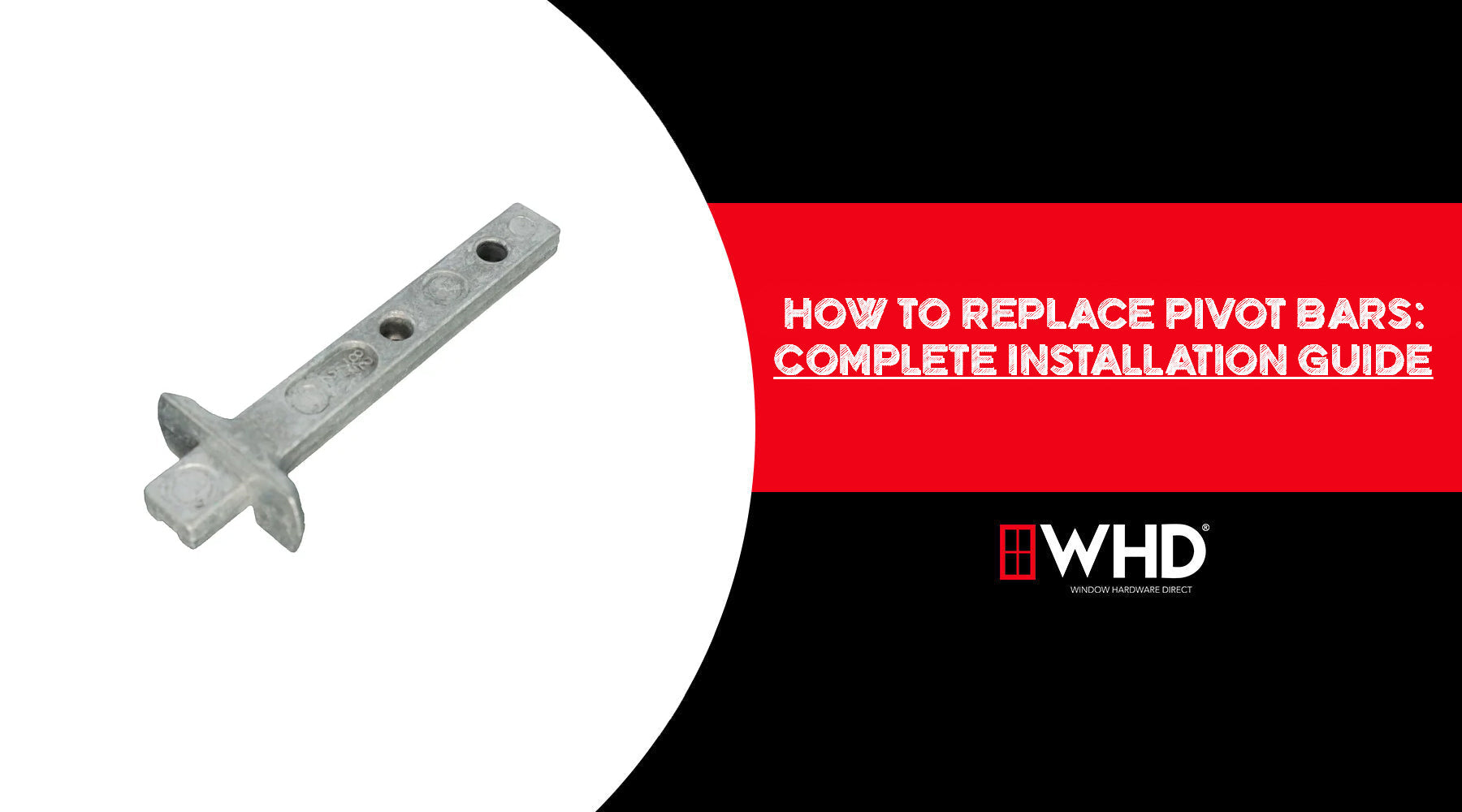

A pivot bar (also called a pivot pin or pivot shoe bar) is a metal piece installed at the bottom corners of a window sash. It engages with the balance shoe inside the window frame, allowing the sash to tilt in for cleaning while staying supported.

Common Types of Pivot Bars:

• Die-cast pivot bars

• Stainless steel pivot bars

• Offset or non-offset pivot bars

• Screw-mounted or riveted pivot bars

Choosing the correct replacement pivot bar is essential for proper window function.

Signs You Need to Replace a Pivot Bar

You may need pivot bar replacement if you notice:

• The window sash tilts unevenly

• One side of the window drops suddenly

• The sash will not tilt in or lock properly

• Visible bending, cracking, or breakage

• Pivot bar slipping out of the balance shoe

Ignoring these issues can lead to balance failure or sash damage.

Tools and Materials Needed:

Before starting pivot bar installation, gather the following:

• Replacement pivot bars (correct size and offset)

• Phillips or flathead screwdriver

• Measuring tape or calipers

• Marker or pencil

• Safety gloves and eye protection

Pivot Bar Installation Guide

Step 1: Remove the Window Sash

Tilt the sash inward and carefully lift one side up to disengage the pivot bar from the balance shoe. Repeat on the opposite side and remove the sash completely.

Step 2: Remove the Old Pivot Bar

Locate the pivot bar at the bottom corner of the sash. Remove the mounting screw(s) and slide the pivot bar out. Inspect the area for cracks or damage.

Step 3: Measure and Match the Replacement

Measure the length, width, thickness, and offset of the old pivot bar. The replacement must match these specifications to ensure proper engagement with the balance shoe.

Step 4: Install the New Pivot Bar

Insert the new pivot bar into the sash channel, aligning it with the original screw holes. Secure it firmly, but do not overtighten, as this may strip the threads or crack vinyl sashes.

Step 5: Reinstall the Window Sash

Insert one pivot bar into the balance shoe, then compress and insert the opposite side. Slowly tilt the sash upright and test for smooth movement.

Testing After Pivot Bar Replacement

After installation, confirm that:

• The sash tilts in smoothly and evenly

• The window opens and closes without resistance

• Both pivot bars stay securely engaged

• The sash remains level when opened

If the window binds or drops, recheck pivot bar alignment and balance engagement.

Common Installation Mistakes to Avoid

• Installing the wrong offset pivot bar

• Using incorrect screw length

• Overtightening screws

• Replacing only one pivot bar instead of both

• Ignoring damaged balance shoes

Replacing pivot bars in pairs is highly recommended for long-term performance.

Conclusion

Proper pivot bar installation is essential for window safety, balance, and ease of use. With the right tools, accurate measurements, and careful installation, replacing pivot bars can be a cost-effective repair that restores full window function.
