Pivot Lock Shoe - Left and Right Hand Sold Separately
Return Policy
Approved returns must be initiated within 14 days of receiving the item.

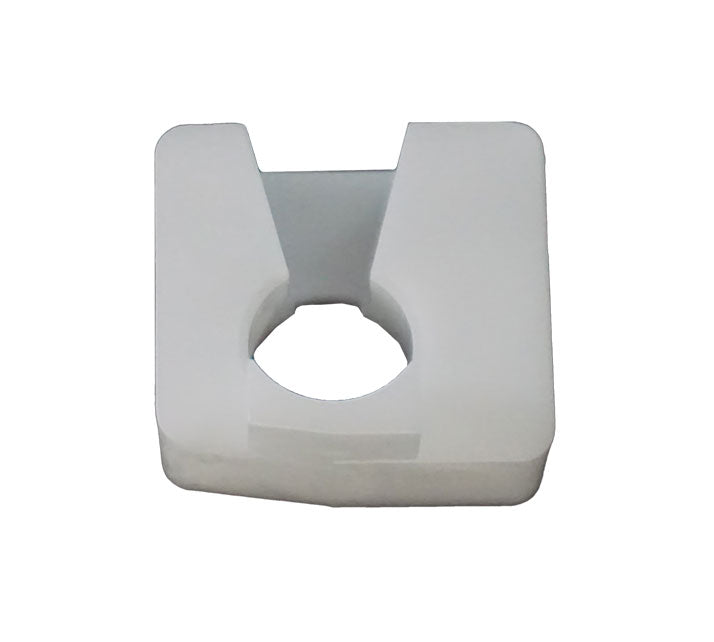

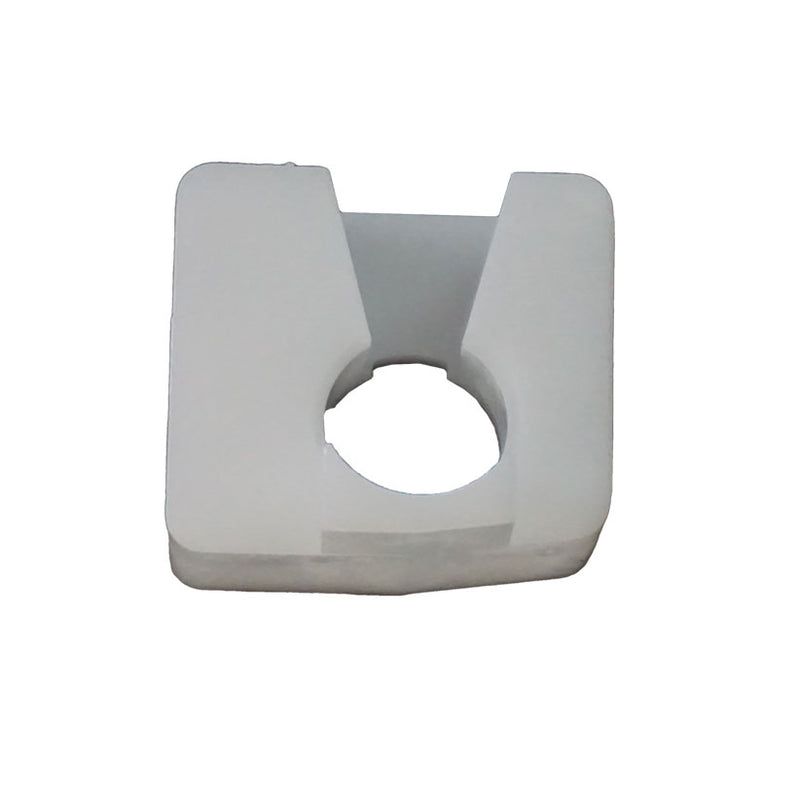

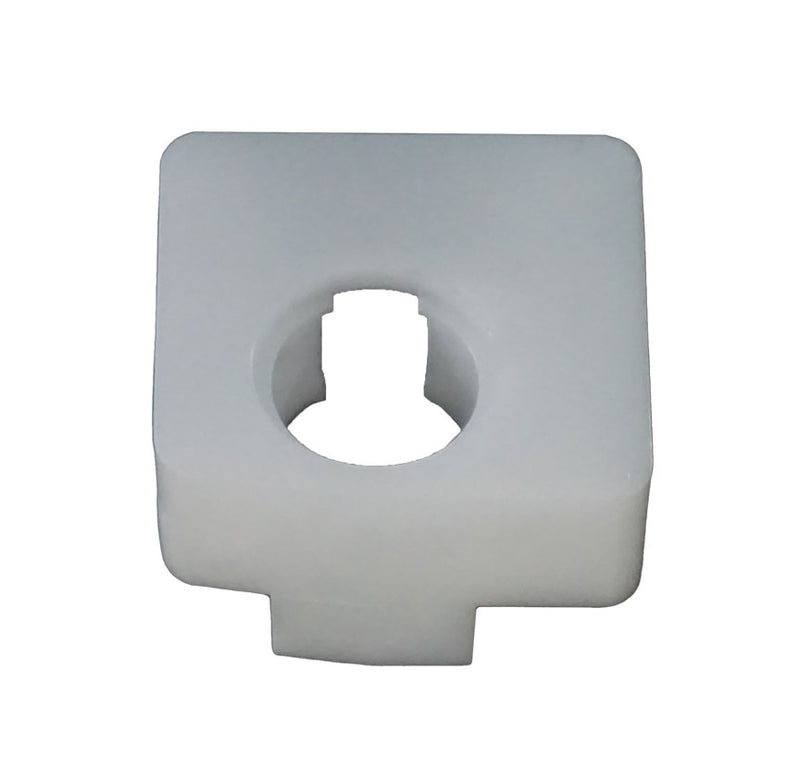

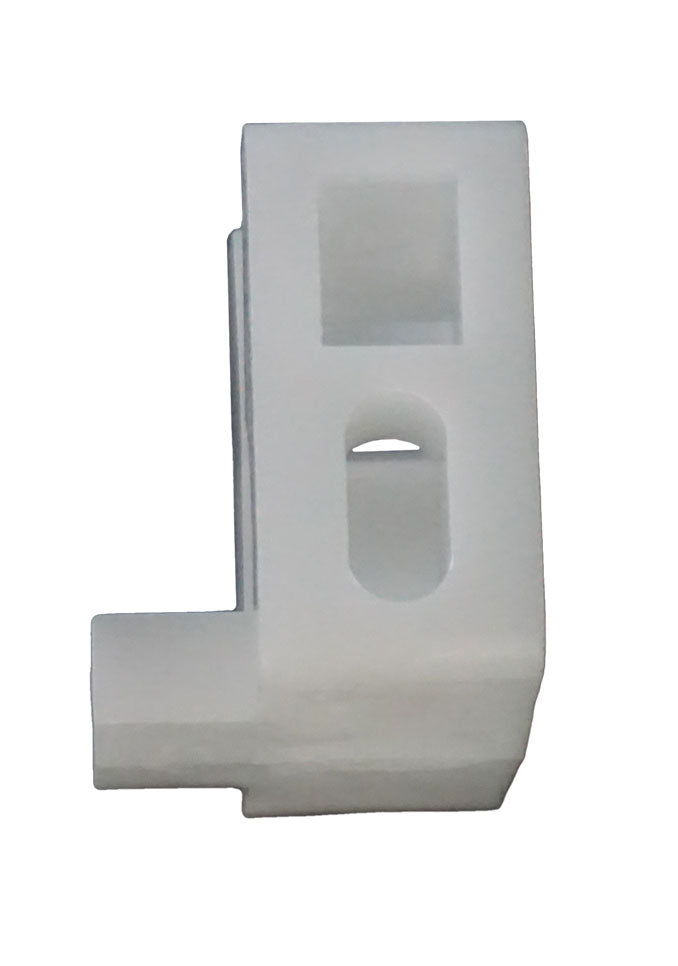

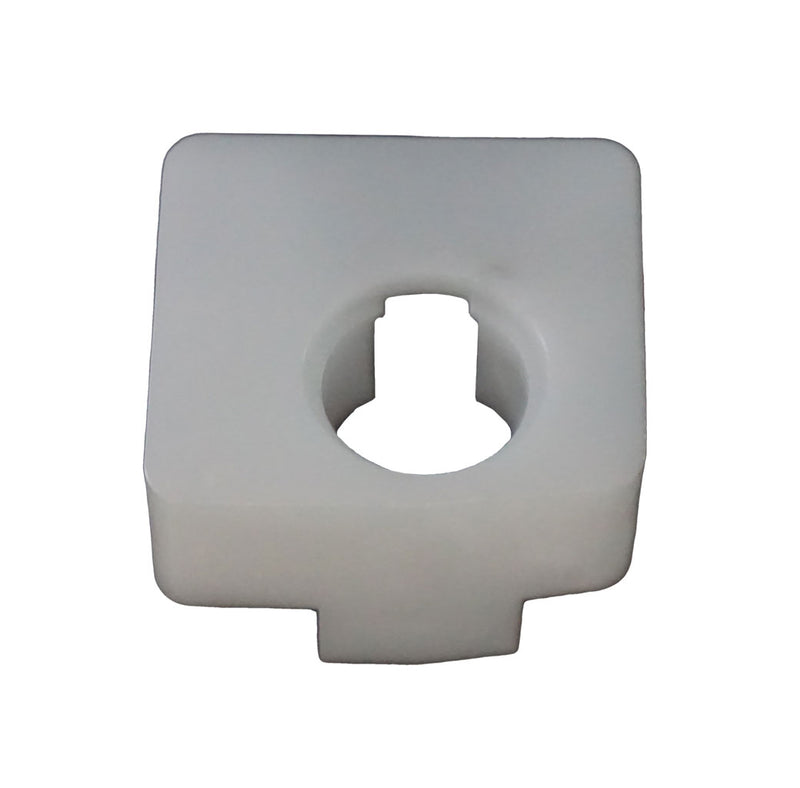

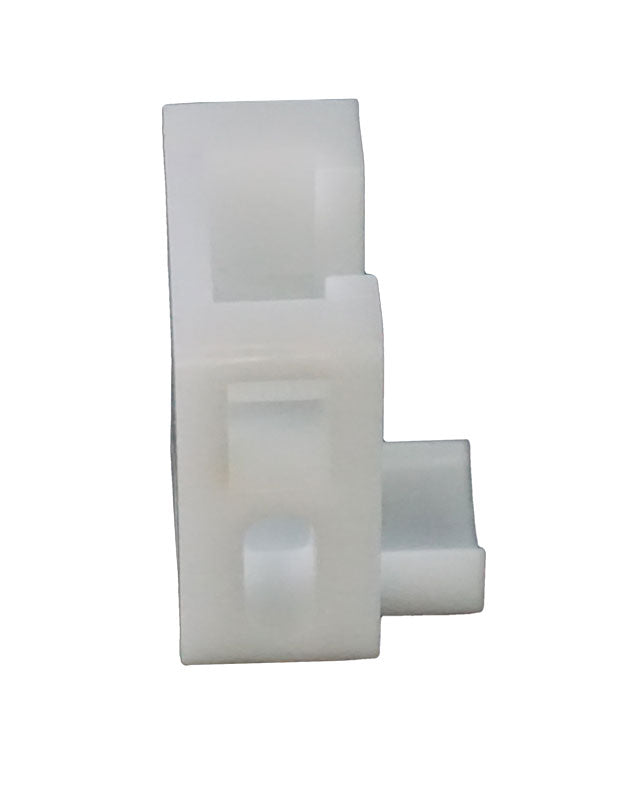

The pivot lock shoe is used in tilt window applications and sits in the jamb channel and has a cam which will lock the shoe in the channel when the sash is tilted inwards. Pivot lock shoes work in tandem with window pivot bars to allow windows to tilt.
- Left and Right Hand Shoes Sold Separately
- Brakes and Cams Sold Separately, as They Vary for Different Applications
- Measures L: 1-1/4" x W: 1-7/16"
- Depth: 5/8"
- Left and Right Hands Engraved LH and RH on Back
