How to Measure Spiral Window Balances

Posted by Window Hardware Direct on

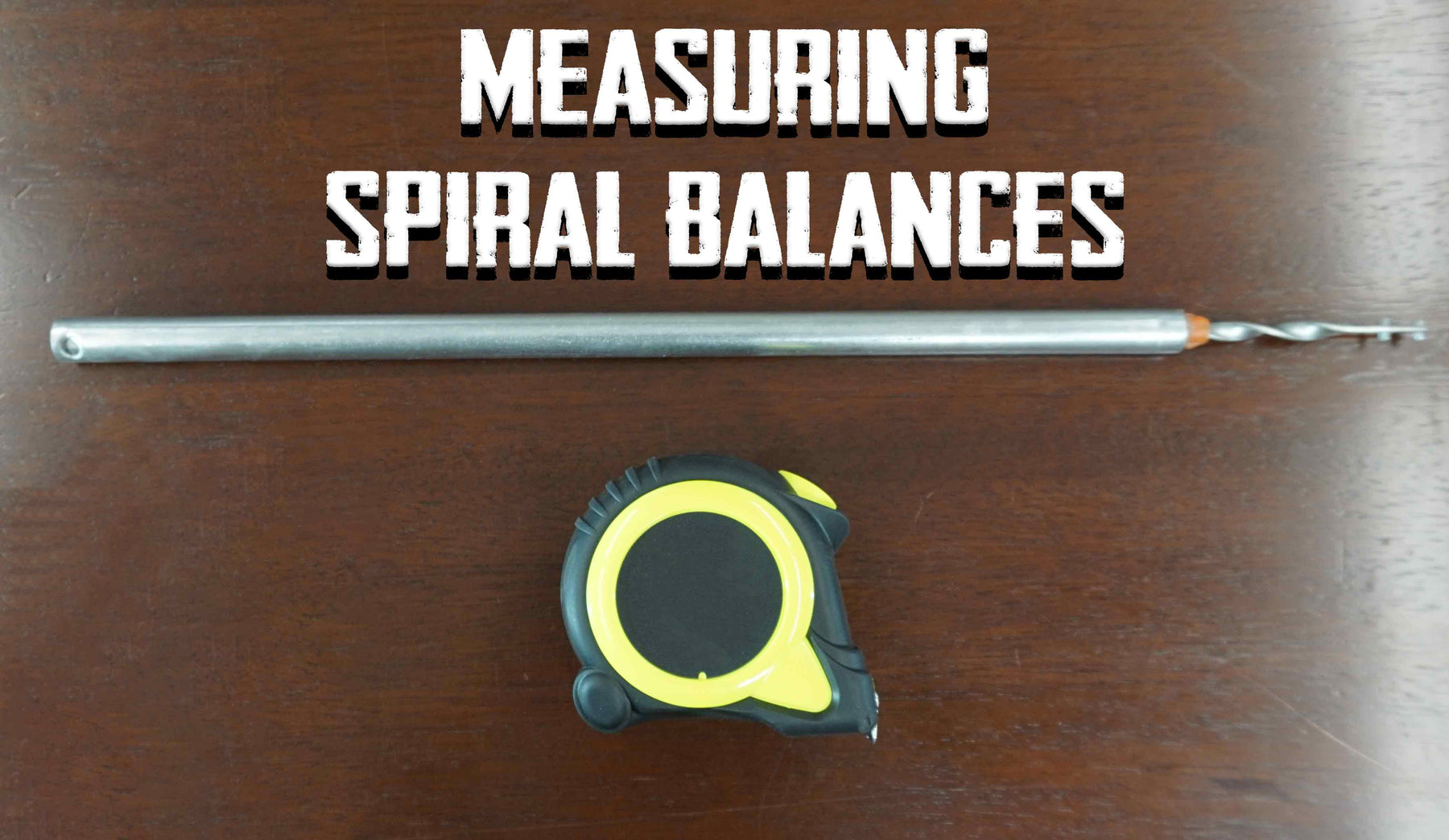

How to measure spiral window balances

To measure spiral window balances first you measure the width of the metal tube, the most common widths are 5/8" and 3/8" (please note: 5/8" and 9/16" are often used interchangeably in the industry). Then you need to measure the length of the balance. When measuring the length, measure only the metal tube, don't include the colored coupling or spiral.

Spiral Balance Width

Measure the width of the tube. This balance has a width of 5/8"

Spiral Window Balance Length

When measuring the length, measure only the metal tube

Spiral Window Balance Length

This balance is 14"

Watch the video below to learn more:

Share this post

← Older Post Newer Post →

  • I have plastic tubes on my balances, that have completely disintegrated, but the spiral springs are still there. How do I Measure the length of the tube when it is missing?

    Luke on
