If your window crank handle is slipping, worn out, or no longer gripping properly, the issue is often a mismatched or worn spline. Knowing how to measure the spline of a window operator handle is essential to finding the correct replacement and restoring smooth window operation.

This guide walks you through exactly what a spline is, how to measure it accurately, and how to avoid common mistakes.

What Is a Window Operator Handle Spline?

The spline is the grooved shaft on the window operator (the mechanism that opens and closes the window). The handle fits onto this shaft, and the grooves ensure a secure connection so the handle can turn the mechanism.

If the spline size doesn’t match the handle, the handle may:

• Slip when turning



• Feel loose



• Fail to operate the window

Tools You’ll Need:

To measure a window operator spline accurately, gather:

• Calipers (digital or manual preferred for precision)



• Ruler (backup option)



• Flashlight (to see grooves clearly)



• Paper and pen (to note measurements)



Step-by-Step: How to Measure the Spline of a Window Operator Handle

1. Remove the Handle

Start by removing the existing handle:

• Look for a screw (often hidden under a cap)



• Use a screwdriver to loosen it



• Pull the handle straight off



This exposes the spline shaft.

2. Measure the Spline Diameter

Using calipers:

• Measure across the widest part of the spline (outer edge to outer edge)



• Record the measurement in inches or millimeters

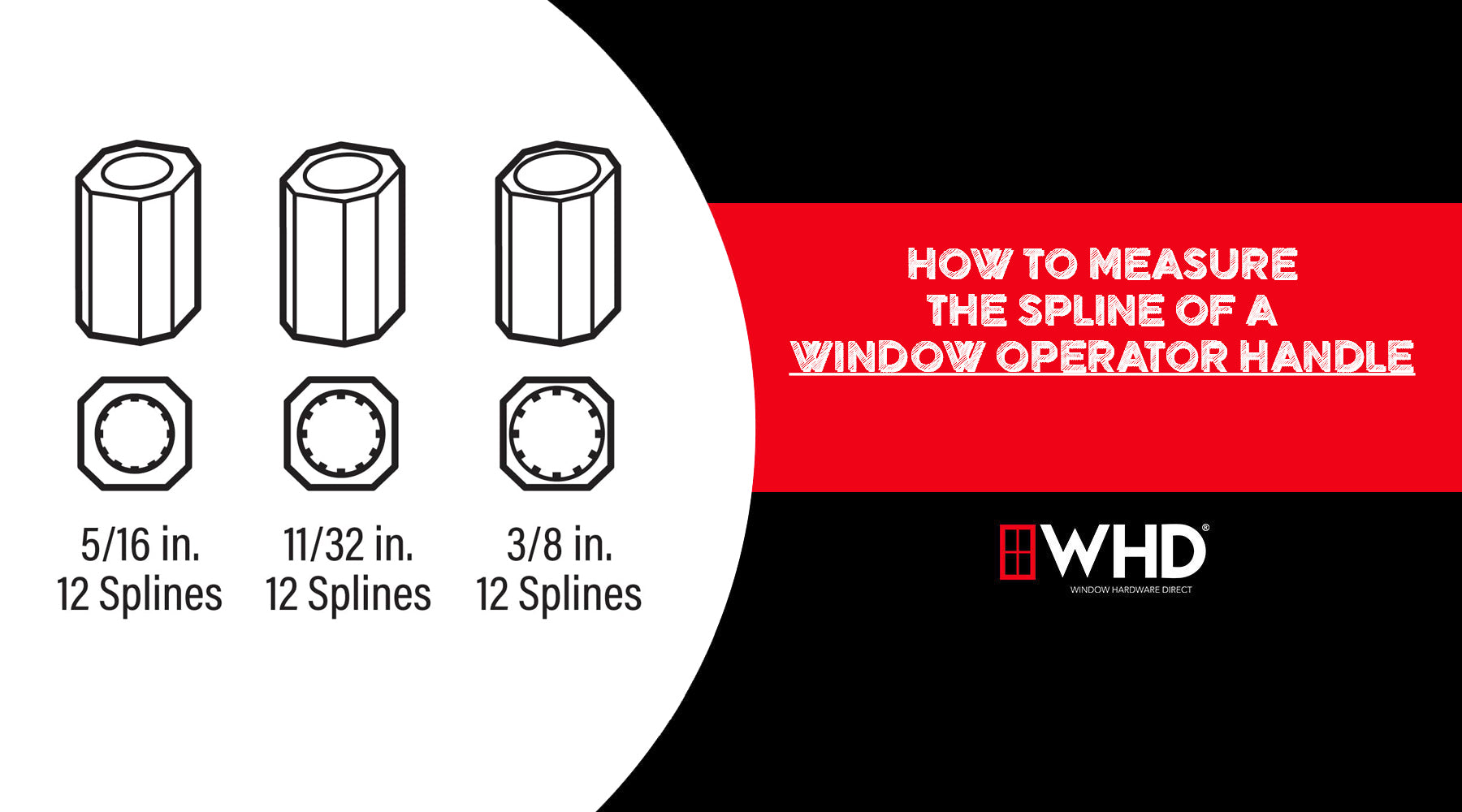

Common spline diameters include:

• 11/32 inch



• 3/8 inch



⚠️ Tip: Even a small difference (like 11/32" vs 3/8") matters.

3. Count the Splines (Teeth)

Look closely at the grooves around the shaft:

• Count the number of ridges (splines)



Typical counts include:

• 12 spline



• 16 spline



This is critical for compatibility.

4. Measure the Spline Length

Measure how far the spline extends from the base:

• Place the ruler or calipers at the base



• Measure to the tip of the shaft



This ensures the handle seats properly without bottoming out or being too loose.

5. Check the Shape

Most splines are:

• Round with evenly spaced grooves



But occasionally you may find:

• Slightly tapered shafts



• Unique proprietary designs



Take note if anything looks unusual.

Quick Reference: What You Need to Match

When replacing a handle, match these three specs:

1. Diameter (e.g., 11/32")



2. Spline count (e.g., 12 splines)



3. Length (depth of insertion)



All three must align for a proper fit.

Common Mistakes to Avoid

• Guessing the size instead of measuring



• Measuring only diameter and ignoring spline count



• Using a ruler instead of calipers (less accurate)



• Not removing the handle before measuring



When to Replace the Operator Instead

If the spline itself is:

• Stripped



• Rounded off



• Damaged



Then replacing just the handle won’t fix the issue—you’ll need a new window operator mechanism.

Frequently Asked Questions (FAQs)

What is the most common spline size?

The most common sizes are 11/32 inch and 3/8 inch, often with 12 splines.

Can I measure without removing the handle?

It’s not recommended. You won’t get accurate diameter or spline count measurements.

What if my measurement is between sizes?

Always use calipers and recheck. Even slight inaccuracies can lead to the wrong replacement.

Final Thoughts

Learning how to measure the spline of a window operator handle saves time, money, and frustration when replacing window hardware. With just a few tools and careful measurement, you can ensure a perfect fit and restore smooth window operation.

If you're unsure, take a photo and your measurements and send them to us!—we can help confirm the correct match. For more information about window handle splines or assistance ordering a replacement operator, Contact The WHD Team! We’ll be happy to help get you the right parts.
