Introducing the Truth 201 Series Standard Duty 4-Bar Hinge, designed for windows to provide exceptional functionality and durability. This hinge is crafted from high-quality materials that ensure long-lasting performance and reliability.

Featuring a sleek and stylish design, this 4-Bar Hinge seamlessly blends into any window frame. It offers smooth and effortless operation, allowing for easy opening and closing of your windows. The hinge also provides a secure and stable fit, ensuring your windows stay in place.

Whether you're replacing old and worn-out hinges or looking to upgrade your windows, the Truth 201 Series Standard Duty 4-Bar Hinge is the perfect choice. With its outstanding features and superior quality, this hinge is sure to exceed your expectations. The table below will help guide you on choosing the right hinge.

These non-handed 4-Bar Hinges are specially designed for casement, awning, and projected vents with a lip on the outside edge.
Standard Duty 4-Bar Hinges are generally used for residential projects requiring relatively light window sections (projected units up to 40 lbs.). These hinges are normally provided with a stop built into its track -- and is generally used with awning and projected windows. Hinges designed without the stop feature will open to approximately 65° in casement applications
Concealed awning hinge with a stack height of 1/2"
Non-magnetic stainless steel. Manufactured with a brass shoe.
8-20"
55° or 65°angle of opening
The main bar (in the jamb) for the standard duty hinge is 3/4"

Refer to the table below for more information:

SKU

Bar Length

Includes Stop

# of screws

"A"

"B"

"C"

"D"

"E"

"F"

"G"

"H"

"J"

014-82-1-1

Yes

8-3/16"

N/A

4-3/4"

5-3/16"

6-25/32"

5-5/32"

3-3/16"

014-82-11-1

18"

Yes

18-3/16"

9-3/4"

10-3/16"

16-25/32"

9-31/32"

9-17/32"

7-9/16"

8-3/8"

014-82-12-1

20"

Yes

20-3/16"

10-3/4"

11-3/16"

18-25/32"

10-27/32"

10-13/32"

8-7/16"

9-1/4"

014-82-2-1

Yes

8-3/16"

N/A

4-3/4"

5-3/16"

6-25/32"

5-5/32"

3-3/16"

014-82-3-1

10"

Yes

10-3/16"

5-3/4"

6-3/16"

8-25/32"

6-15/32"

6-1/32"

4-1/16"

4-7/8"

014-82-3-2

10"

10-3/16"

5-3/4"

6-3/16"

8-25/32"

6-15/32"

6-1/32"

4-1/16"

4-7/8"

014-82-4-1

10"

Yes

10-3/16"

5-3/4"

6-3/16"

8-25/32"

6-15/32"

6-1/32"

4-1/16"

4-7/8"

014-82-5-1

12"

Yes

12-3/16"

6-3/4"

7-3/16"

10-25/32"

7-11/32"

6-29/32"

4-15/16"

5-3/4"

014-82-5-2

12"

12-3/16"

6-3/4"

7-3/16"

10-25/32"

7-11/32"

6-29/32"

4-15/16"

5-3/4"

014-82-7-1

14"

Yes

14-3/16"

7-3/4"

8-3/16"

12-25/32"

8-3/16"

7-3/4"

5-3/4"

6-19/32"

014-82-9-1

16"

Yes

16-3/16"

8-3/4"

9-3/16"

14-25/32"

9-3/32"

8-21/32"

6-11/16"

7-3/32"

014-82-9-2

16"

Yes

16-3/16"

8-3/4"

9-3/16"

14-25/32"

9-3/32"

8-21/32"

6-11/16"

7-3/32"

To learn more about our Duty 4-Bar Hinges watch the video below:

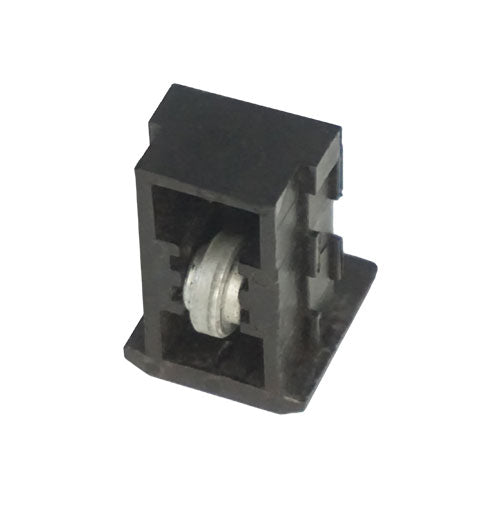

WRS 1-3/4" Sliding Window Roller Assembly
