Truth Hardware EntryGard Dual Arm Awning / Casement Operator

Truth Hardware EntryGard Dual Arm Awning / Casement Operator

SKU 014-65-02
by Truth Hardware
$48.73 - $67.07
$67.07
$48.73 - $67.07
$67.07
  • LIMITED QUANTITIES AVAILABLE, NO LONGER AVAILABLE AFTER STOCK IS GONE
  • Dual-arm action pushes the sash open while pulling the hinge side of the sash to the open position. When properly installed this operator results in almost effortless operation of both casement and awning-type windows of many sizes and weights, even those with insulated and double-insulated glass

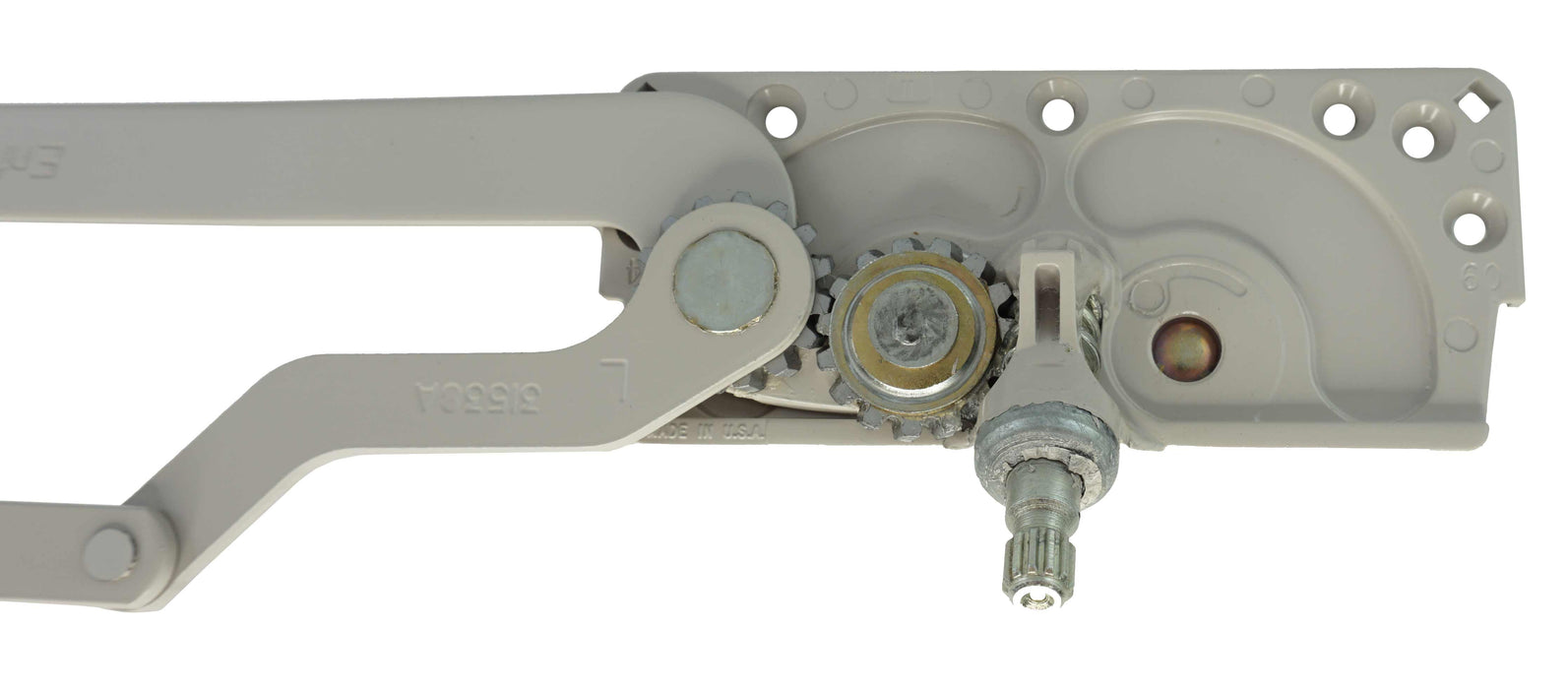

  • High-pressure die-cast zinc operator base. Hardened steel drive worm and gears.
  • Electrostatically applied durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.
  • Operator handing is determined by the hinge side when viewed from the outside.
  • For accurate hardware placement in vinyl or metal applications, pre-drilling of the window profile is recommended.
  • Uses Truth EntryGard Operator Cover

Refer to this chart when selecting your SKU:

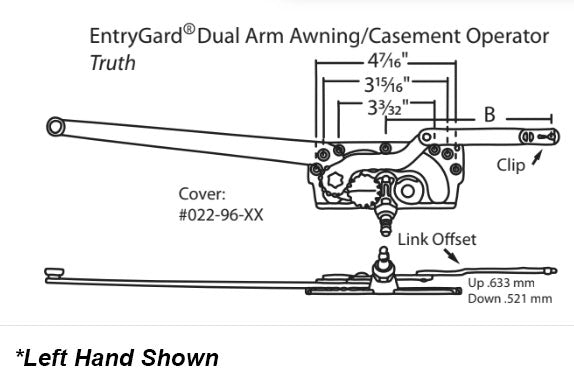

WRS SKU Hand Link Offset Clip Length "B" (refer to diagram in pictures)
014-65-01 Left Up Top 5-17/64"
014-65-02 Right Up Top 5-17/64"
014-65-03 Left Down Top 5-17/64"
014-65-04 Right Down Top 5-17/64"
014-65-05 Left Up Bottom 5-17/64"
014-65-06 Right Up Bottom 5-17/64"
014-65-07 Left Down Bottom 5-17/64"
014-65-08 Right Down Bottom 5-17/64"
014-65-09 Left Up Top 2-59/64"
014-65-10 Right Up Top 2-59/64"





To learn more about Truth Dual-Arm Operators watch the video below:
