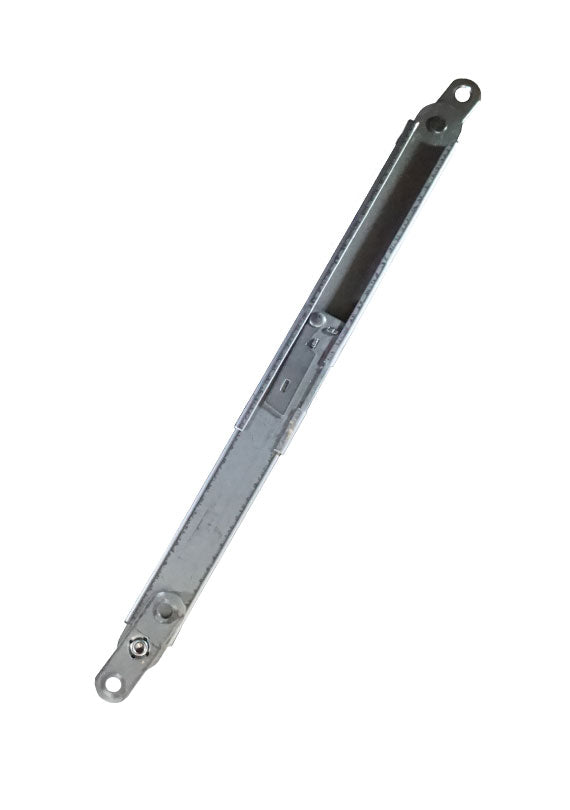

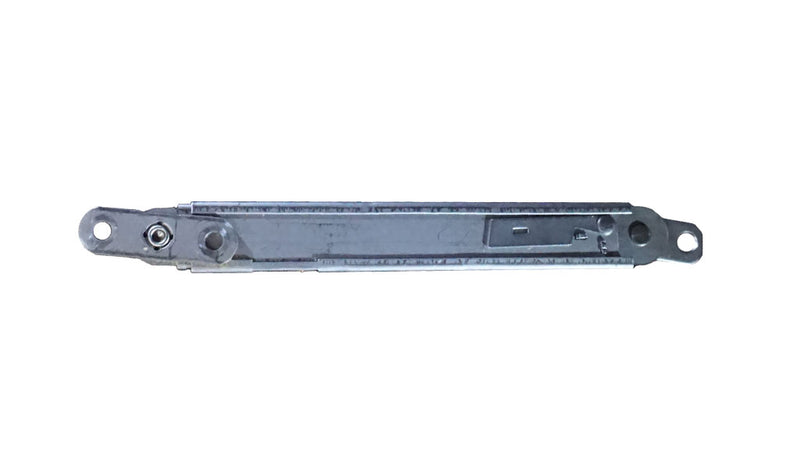

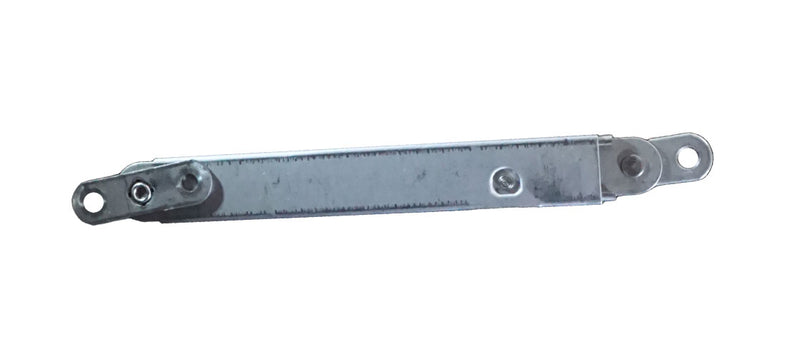

WRS Truth Hardware 8" Stainless Steel Support Arm - .110 Bracket

SKU 014-17-2-1
Original price $35.67 - Original price $35.67
Original price
$35.67 - $35.67
Current price $35.67

Truth support arms must be used with vent “balancing” style hinges. The bottom bracket of the support arm must be mounted as low on the window frame as possible to minimize loading. The open support arm angle must be greater than 35 degrees. Friction adjustment screws help control the free motion of the vent. Vent must be securely locked when left in the closed position.

  • 8" in Length, 12" in the Open Position
  • .110 Brackets
  • Sold Individually, Includes Support Arm Only

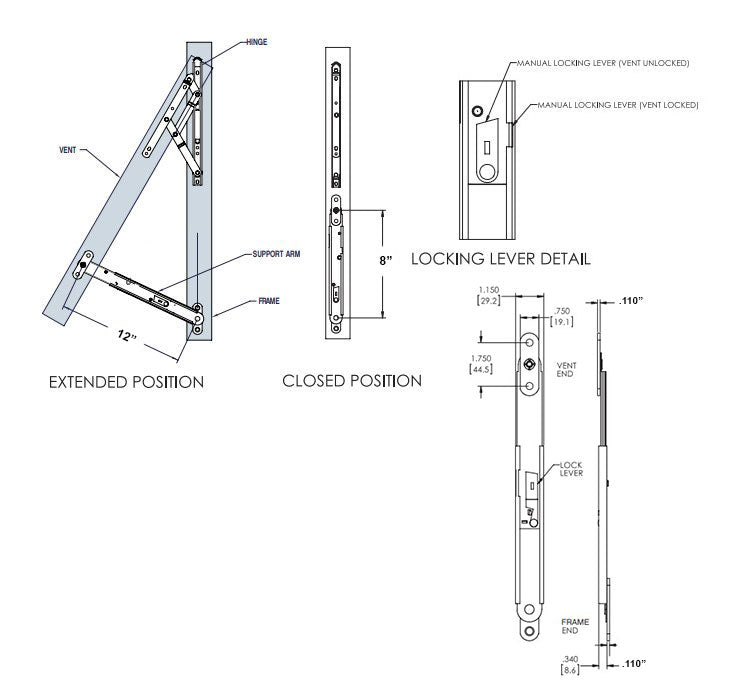

  • See Product Images for further Dimensions
